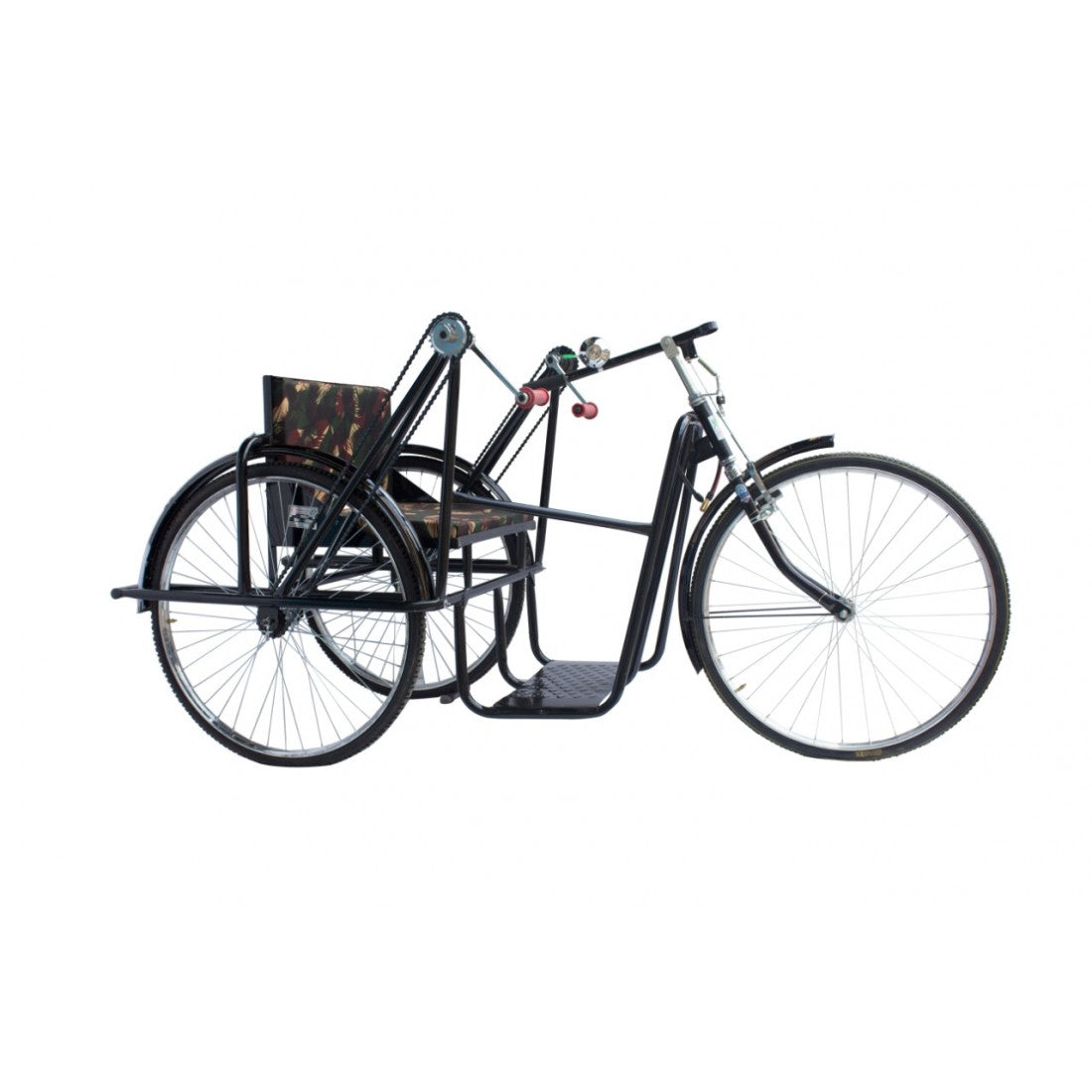

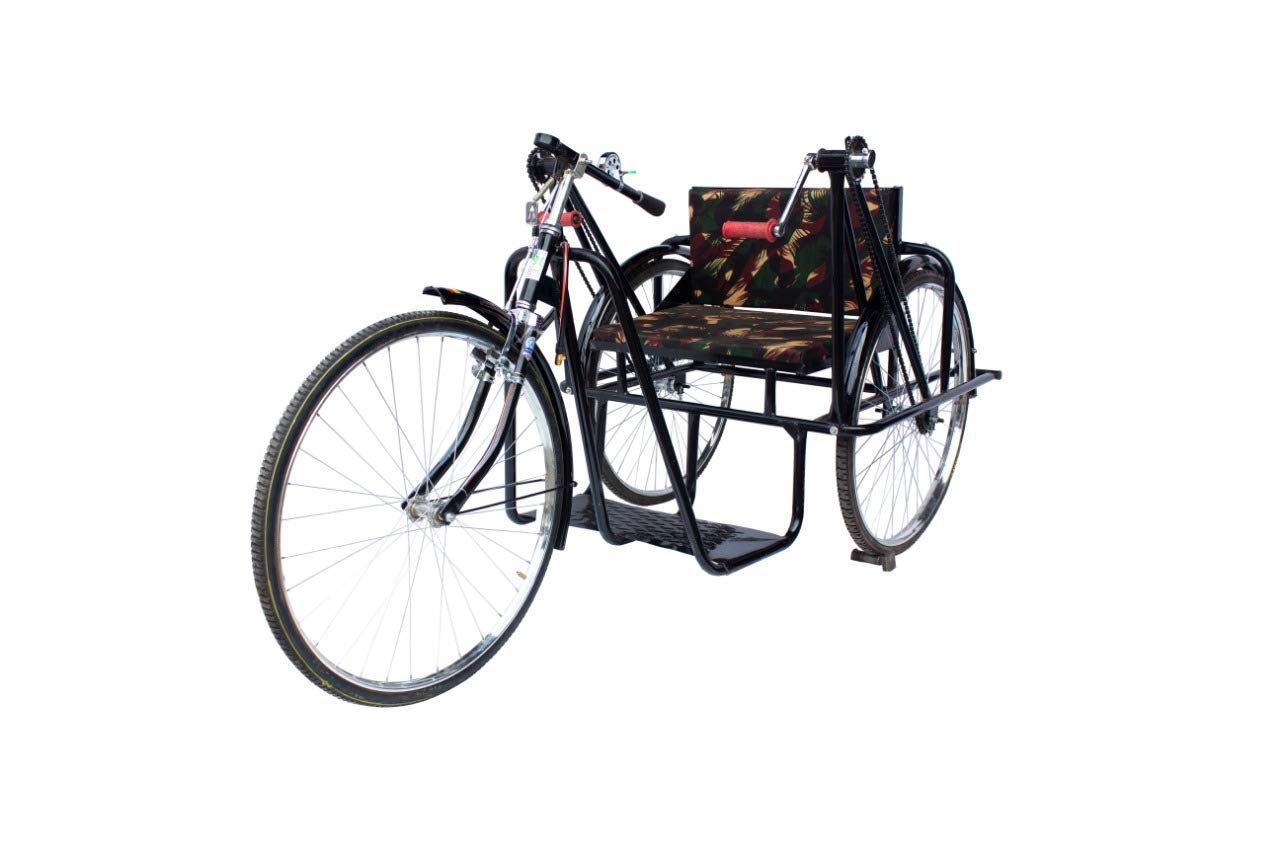

ISI Mark Tricycle For Divyang Person

Overall Dimensions

• Overall Length – 1960 mm (+/-10)
• Overall Width – 890 mm (+/-10)
• Overall Height – 890 mm (+/-10)
• Steel Tube: Steel tube ERW tubing are conforming to IS-2039-1991 (25 mm OD X 1.25 mm)
• Footrest: M.S. sheet are confirming to IS-277-1969
• Tyre& Tube: Tyre& tube (28 X 1.5) are confirming to IS-2414 & 2415-1969
• Wheel Rims: Wheel rims shall be confirming to IS-630-1961 (28 X 1.5) (32 & 40 hole)
• Mudguard: Mudguard shall be confirming to IS-6218 or ISI MARK LOTUS
• Driving Chain: Driving chain are confirming to IS-2403-1963 (136 links)
• Bottom Assembly: Bottom assembly are confirming to IS-1131-32-33-34-1985
• Tool Box (Optional) : Tool box made by the M.S. sheet provided at underside of seat
• Driving Mechanisms: Both Hand Driven
