Forza Freedom Urja 2X Premium Lightweight Foldable Electric Wheelchair

Forza Freedom Urja 2X  Premium Lightweight Foldable Electric Wheelchair

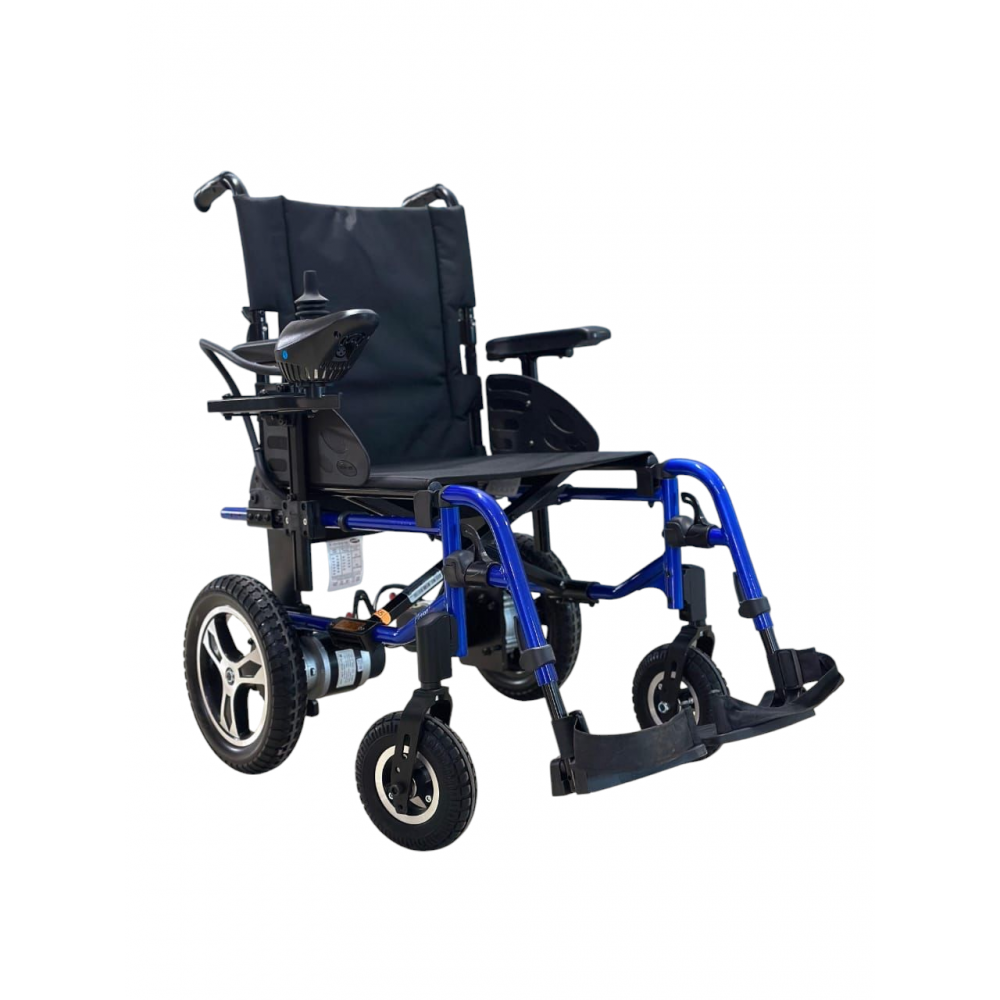

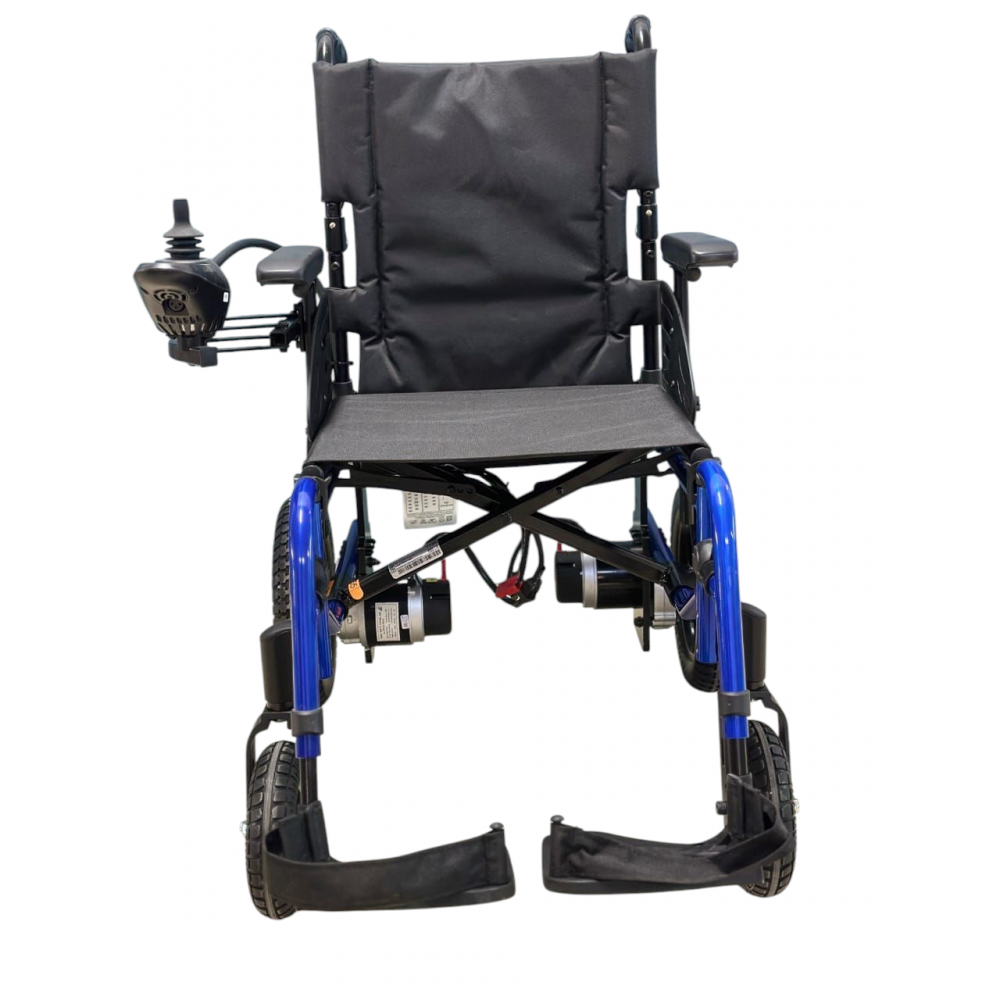

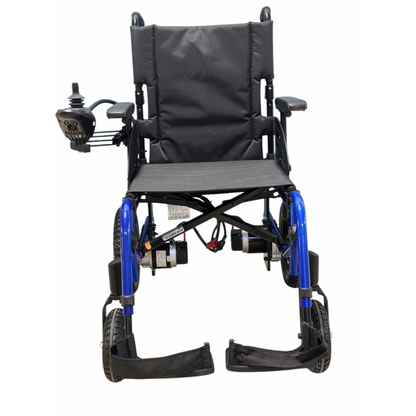

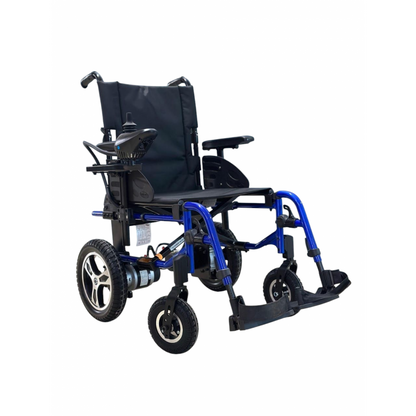

The Forza Freedom Urja 2X is a premium, lightweight and foldable Electric Wheelchair, meticulously crafted from aerospace-grade aluminum for unparalleled quality. This wheelchair offers improved functionality, comfort and stability and incorporates lighter components to reduce weight, providing an efficient rolling action. This model sets the standard for reliability, featuring a comprehensive range of accessories designed to cater to the diverse clinical and mobility requirements of users, making it ideal for everyday use.

Quality :

✓ Aluminium Light-Weight Foldable Wheelchair - 125 kgs weight capacity.

✓ Made of Hi- Grade aerospace-grade aluminum tubing.

✓ Fire Retardant Upholstery- passed EN1021 test (European Standard) – Safe &

Comfortable.

✓ Bio Compatibility Nylon which is nontoxic and skin friendly. REACH & ROHS Certified

✓ Passed Double drum test of 2,00,000 rotations; Passed drop test, Crash Test, &

✓ Passed static stability and static strength tests

Specifications:

✓ Seat width: 15”,16”,17”,18”, 19”.

✓ Seat Depth: 16 & 17”

✓ Seat to floor height: 18”, 19” & 20”.

✓ Backrest Angle: 7 deg.

✓ Backrest Height: 17”

✓ Overall Width: Seat Width + 8”

✓ Overall Length (Incl footrest): 41”, 43”

✓ Turning Radius: 88mm

✓ Weight carrying capacity: 125 kgs

✓ Wheelchair Weight : 25-28 Kgs

✓ Comes in all size ranges of seat width and seat depth as per the user’s need

✓ Standard with 8” PU Castor & 12” rear mag wheel with PU Tyres.

✓ User friendly Customized Seat width option; Sizes available

✓ Backrest options: Fixed, Foldable and Reclining

Motor Specifications

✓ Type of Motor: DC motor

✓ Rated Power: 250 W

✓ Rated Voltage: 24 V

✓ Unload Current: ≤4.0 A

✓ Unload Speed: 120 RPM

✓ Rated Torque: 0.64 NM

✓ Rated Speed: 3700 RPM

✓ Rated Current: ≤13.7 A

Joy Stick Specifications

✓ Rated supply voltage DC24V

✓ Electromagnetic brake, Automatic parking brake

✓ Motor driving current 35A

✓ Control method Full directional control through Hall joystick

✓ Capable of Fault diagnosis

✓ Maximum speed: the maximum output speed of the motor (adjustable)

✓ Parameters setting Speed, Starting speed, Acceleration Motor direction

✓ Travelling range According to the actual system battery

✓ Capable of Brake open circuit detection function

✓ Capable of Reverse braking function

✓ Electrical specifications

✓ Power supply voltage DC 24V

✓ Working voltage DC 19v to DC 30v

✓ Peak voltage DC 35V

✓ Output current 40A max

✓ Braking voltage DC 24V

✓ Braking current 2A max

✓ Battery charging current 3.5A, charged through the controller

✓ Standby current required (Static) ≤ 55 mAmps

✓ Standby current required (power off): 0.1 ± 0.05 MAMPS

✓ Working temperature -25 ℃ to+60 ℃

✓ Storage temperature -45 ℃ to+80 ℃

✓ Waterproof rating: IPX4

Battery specifications:

✓ Li-ion Battery

✓ 24 Volt

✓ 12 AH

Key Features:

✓ Castor housing- Now mounted outside to have more space for the feet while in use.

✓ Basic tool kit is provided with the wheelchair for DIY adjustments

Safety:

✓ Seat belt

✓ Heel Strap

✓ Anti Tipper

Easy to Transport /Portable:

✓ Detachable, swing-in, swing out leg rest.

✓ Detachable and Flip-up armrests

✓ 12” rear mag wheel with PU Tyre

✓ Foldable Frame.

Additional Features:

✓ Color options: Blue, Anthracite Black

Optional Accessory:

✓ Padded Cushion with Velcro
